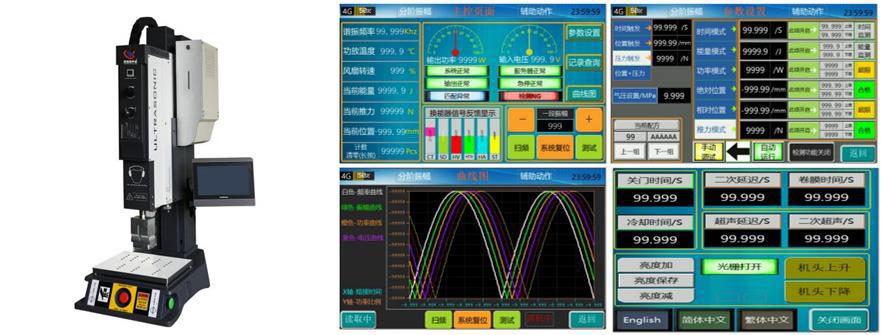

气动精密型超声波焊接机HX-9.3QD

发布时间:2025/6/27 15:11:46   查看:


● 全新设计扫频追频线路,可在0.5秒内扫频并锁定,极大程度降低了换能器与模具在开机扫频时的不必要损伤;
● 系统升级至恒定振幅线路,不受外部电压的变化影响,始终保持工作时的高压、高振幅输出;
● Newly designed frequency scanning and tracking circuit, which can scan and lock in frequency within 0.5 seconds, greatly reducing unnecessary damage to the transducer and mold during startup frequency scanning;
● Upgrade the system to a constant amplitude circuit, unaffected by external voltage changes, and always maintain high voltage and high amplitude output during operation;



● 高强度钢制机架,高压高速状态下工作坚固无后仰;
● 配置品牌电器元件,气压精度可控0.01bar有效保证焊接精度;
● 搭配电子磁栅尺及压力传感器可实现绝对深度与相对深度的精准控制(0.01mm);
● 电机升降机身,可降低人员操作时的疲劳程度;
● 可选用底板水平调整方式,确保使用过程中的焊接精度;
● 配置高精密机械限位,产品焊接精度可控在0.01mm
● 配备多种焊接模式(时间、能量、功率、绝对深度、相对深度)可兼顾多种不同焊接应用;
● 可支持同时开启或单独使用焊接时的品质监控;
● 可接入MES系统实时上传焊接数据,可扩展至上位机功能并支持扫码对应记录数据;
● 实时显示焊接曲线,可直观了解焊接时的动态走向;
● 支持存储多组数字或字母结合命名的焊接数据,便于操作人员查找;
● 可存储多条焊接记录,并导出至PC端便于品质管理的追溯查找;
● High strength stel frame, sturdy and without tilting under high-pressure and high-speed conditions;
● Configure branded electrical components, with a controllable air pressure accuracy of 0.01 bar, effectively ensuring welding accuracy;
● Paired with an electronic magnetic grating ruler and pressure sensor, precise control of absolute depth and relative depth (0.01mm) can be achieved;
● The motor lifts the machine body, which can reduce the fatigue level of personnel during operation;
● The horizontal adjustment method of the bottom plate can be selected to ensure welding accuracy during use;
● Equipped with high-precision mechanical limits, the welding accuracy of the product can be controlled within 0.01mm
● Equipped with multiple welding modes (time, energy, power, absolute depth, relative depth), it can accommodate various welding applications;
● Can support quality monitoring when welding is turned on simultaneously or used separately:
● It can be connected to the MES system to upload welding data in real time, and can be extended to the upper computer function and support scanning corresponding record data;
● Real time display of welding curves, allowing for intuitive understanding of the dynamic direction during welding;
● Support storing welding data named by combining multiple sets of numbers or letters, making it easy for operators to search;
● Can store multiple welding records and export them to the PC for easy traceability and search of quality management;
